 VISAR Anti Reflective, AR, Coating on Polycarbonate

      VISAR 01 Polycarbonate is a multi-layer anti reflective, AR, coating produced by vacuum deposition. It is available on sheet polycarbonate, from 0.5mm to 5.0mm thick. It is also available as a one sided or two sided coated polycarbonate sheet.

        Visiontek Systems is one of the leading manufacturers of sunlight readable PMMA + Anti-Smudge (AFP) coated acrylic, and is highly regarded for its quality products. Our company offers a range of AR coated products that are of a high quality at very affordable prices. We also provide custom solutions for our customers

 Image result for non glare polycarbonate screen images Image result for image anti-reflective coated window

The VISAR 01 coating, like all multi-layer coatings, is susceptible to finger marking so it is recommended that users select the option of an anti fingerprint layer (AS) on the front surface. This hydrophobic layer has no significant effect on the optical performance but improves resistance to finger marking significantly.

 Function

 The sunlight readable function or AR coating comforts the working eyes, and the AFP (Anti-Fingerprint) coating prevents contamination from human contact. This product has been created for both industrial and consumer displays

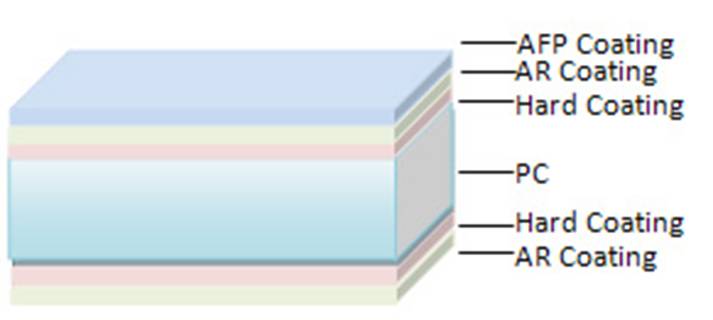

 Product Structure



http://www.bothharvest.com/files/bht_pro_05.jpg





Features Include

 1. Dirt and fingerprints are easily removed

 2. Anti Smudge coating makes water contact angle above 110 degree

 3. Optical grade Polycarbonate with a vapour deposited coating

 4. High transparency and low reflection from both sides

 5. Close to neutral AR coating colour

 6. 440 to 640nm reflection under 0.5%

 7. 300 to 700nm reflection under 2%

 8. Total transparency higher than 98% within whole view area

 9. Anti-scratch, abrasion resistance



 Characteristics



Characteristics

Method

Result

OPTICAL

Transparency

JISK7105

92%

Reflection

JISK7105

0.5%



MECHANICAL

Hardness

Pencil Hardness per 1kg, F

F

Contact Angle

Water contact angle

112 degree

Adhesion (initial)

Cross cut test

100/100

Impact Strength

ASTM D 256A

90kgf/cm



ENVIRONMENT

Humidity Resistance

60 degree C, 95% humidity

Up to 1000 hrs

Heat Deflection Temp.

ASTM D 648

130 degree C

Brittle Temp.

ASTM D 746

-100 degree C



Standard Size Sheet Dimensions

 Sizes 275 x 360mm, 300 x 380mm, 385 x 500mm, 420 x 530mm, 430 x 630mm and 600 x 1000mm

 Thicknesses 0.5mm, 0.65mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm

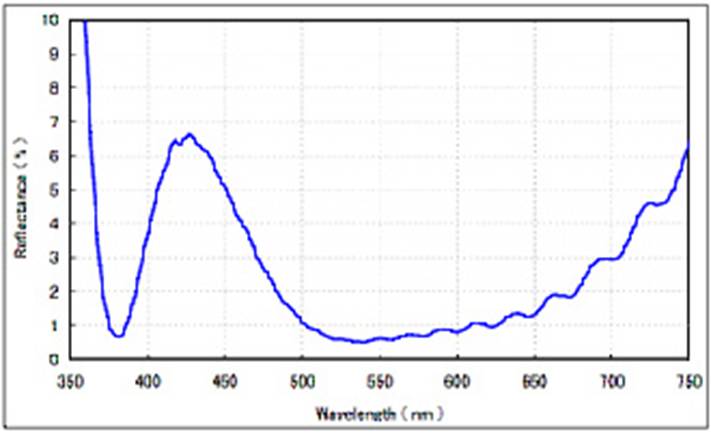

 Anti-Reflective Spectrum



http://www.bothharvest.com/files/bht_pro_06.jpg



Other products available in the VISAR AR range are:

 VISAR 01 AR Acrylic

 VISAR 02 AR Acrylic For Large Displays

 AR Anti Reflective Coated Glass

 AR Anti Reflective Matt Film
