Infrared, IR, Band Pass Filter
IR or infrared pass filter provide high transmittance of infrared radiation while reducing or blocking transmission of energy below 700nm. The use for infrared filters has grown with the development of IR photometric systems. Specific applications include remote control units, security systems, proximity sensors, scanners and IR cameras.
Product
format
S306 is an acrylic material available in thickness from 0.5mm.
Parts can be supplied to final drawing milled by CNC and can include steps
and holes. Non-glare finish is optional for the reduction of front surface
reflections. S306 is the closest alternative to the
discontinued XR84 material.
Parts can be supplied to final drawing precision cut by our zero width X-Y CNC. Full CAD/CAM means we have no tooling charges and we can work directly from drawings or electronic files.

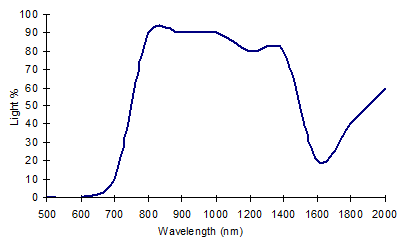

Spectral Properties
S306
is broad-band IR pass filters in the range
of 800 to 2000 nano-meters. Efficient cut off below 700nm and rapid increase
to 90+% transmittance at 800nm results in a high signal to noise ratio for
near infra red devices.
Design options
Custom optical lamination in glass or polycarbonate., EMI shielding with laminated EmiClare mesh and silk screen printing.
