Anti-Reflective Glass, MLAR coated Glass

Visiontek Systems offers a range anti reflective coated glass sheets and pieces. We can supply either one side or two side Anti reflective coated. Anti reflective (MLAR) coatings will reduce the reflectance of plain glass by about 9 times to less than 0.5% across the visible spectrum.

Windows up to 812 x 1270mm (32 x 50”)

Standard Thickness (mm)

1.1, 1.6, 2.0, 2.3, 3.0, 4.0, 5.0, 6.0 and 8.0mm

Other thickness supplied by optical lamination

  MLAR coatings will reduce the reflectance of plain glass by about 9 times to less than 0.5% across the visible spectrum.

Multi-Layer Anti-Reflective (MLAR) coatings

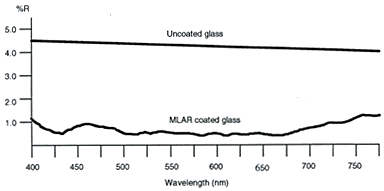

Spectral Characteristics - measured at an angle of incidence between 0 and 15°


Absolute reflectance Rabs <0.6% 440 - 650nm
Average reflectance Rave < 0.3% 440 - 650nm

Reference specifications - MLAR coatings conform to the requirements of the following specifications:


Coating quality DIN 3140 part 10 (1978)
Abrasion resistance MIL-E-12397B
Adhesion MIL-C-48497
Temperature and humidity MIL-C-48497
